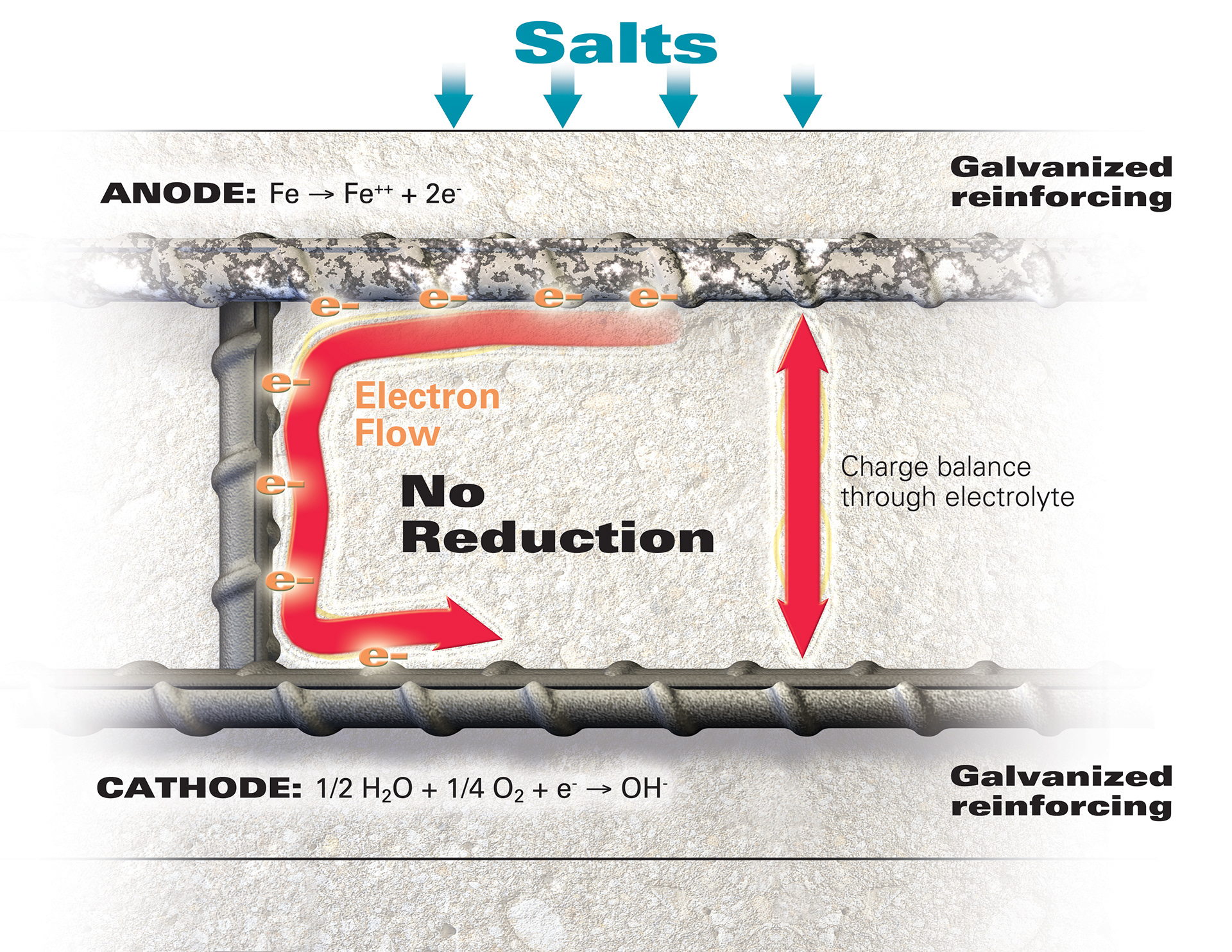

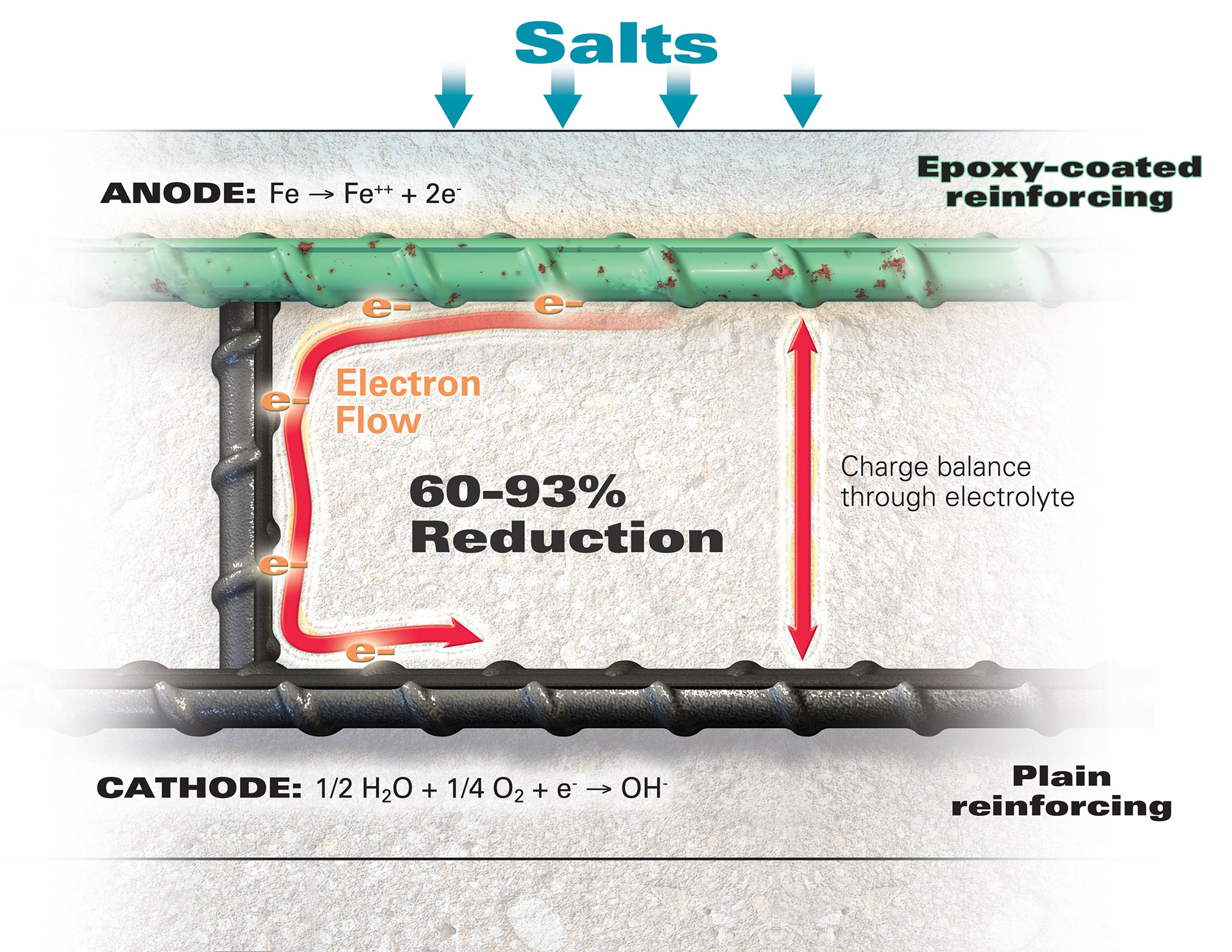

These illustrations were developed to help explain the corrosion mechanism in reinforcing steel in concrete. Each illustration shows the different reactions needed for corrosion to continue with the different types of reinforcing steel corrosion preventatives.
